Aluminum die casting and mold manufacturing process flow

Aluminum die casting and mold manufacturing process flow

Aluminum die casting involves injecting molten aluminum into molds under high pressure to create precise, durable components. Understanding this process flow optimizes manufacturing by reducing defects and improving quality. For instance, streamlined operations save costs and enhance competitiveness. Industries like automotive benefit from lightweight, fuel-efficient parts, driving significant market growth.

Market Insight:

• Projected market growth: USD 46.2 billion (2024-2028).
• Key driver: Automotive sector’s demand for advanced, lightweight components.
• Aluminum die casting makes strong parts by forcing hot aluminum into molds under high pressure. This improves how things are made.
• Modern tools like CFD and FEA help find and fix problems. They make sure the parts are made well and quickly.
• Aluminum is light and strong, so it works great for cars and planes. It helps save fuel and boosts performance.

Key Takeaways

What is Aluminum Die Casting?

Overview of the process

Aluminum die casting is a manufacturing process where molten aluminum is injected into a mold cavity under high pressure. This method creates components with intricate shapes and tight tolerances. Unlike other casting methods, it offers shorter production cycles and minimal post-processing. The process is ideal for producing lightweight, durable parts with excellent thermal conductivity and corrosion resistance.

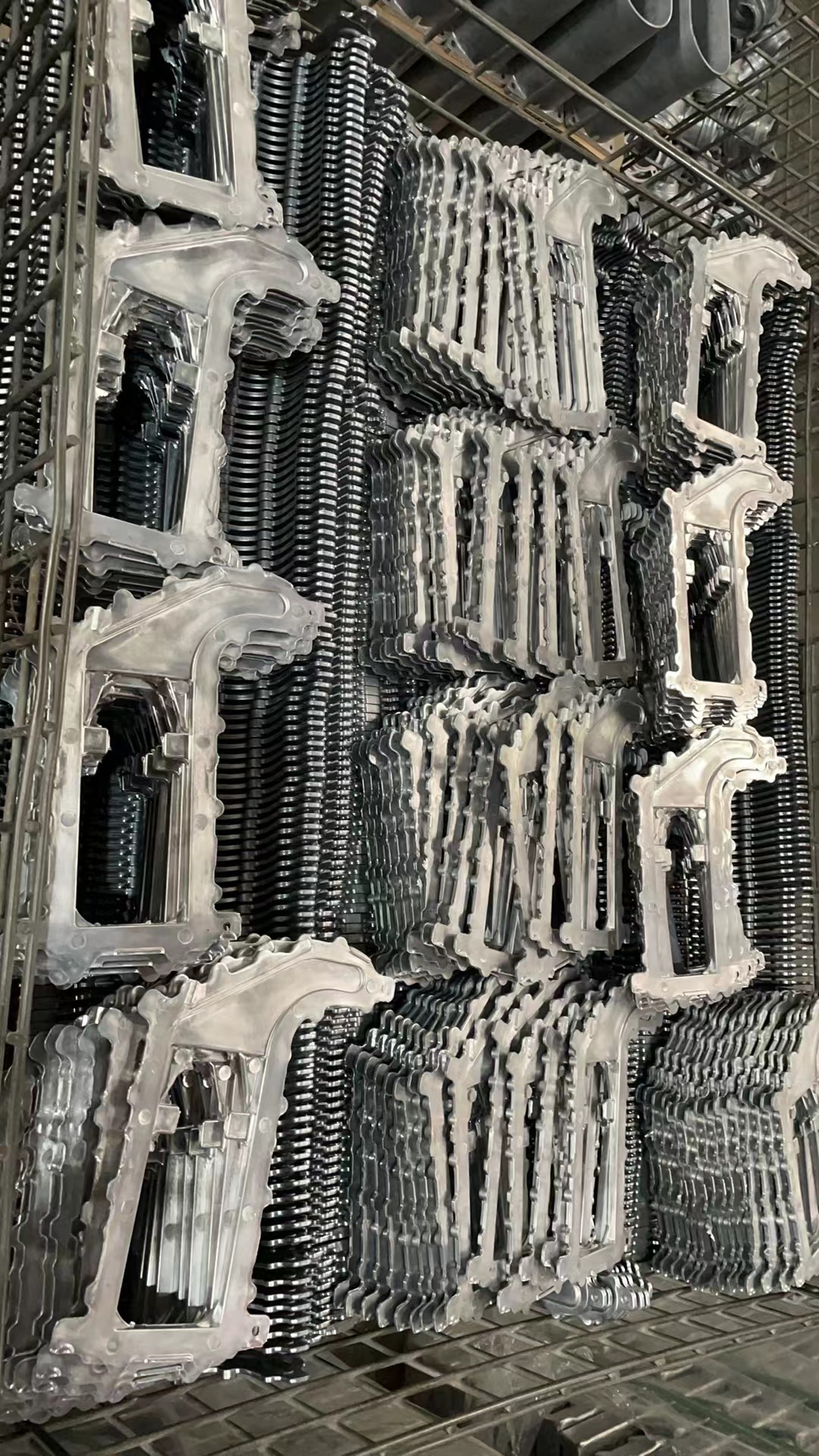

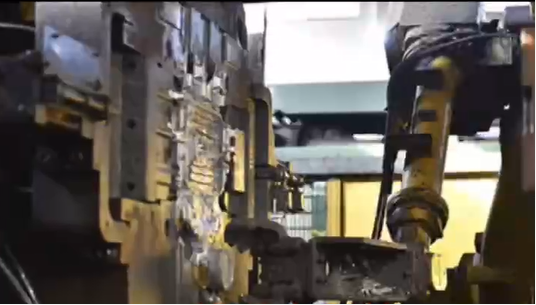

Role of molds in aluminum die casting

Molds play a critical role in aluminum die casting. They determine the shape, size, and surface finish of the final product. I’ve seen how different types of molds cater to specific applications. For instance, cold chamber molds are perfect for aluminum due to its low melting point, while hot chamber molds work better for smaller, intricate parts. Multi-cavity molds improve efficiency by producing multiple parts simultaneously, while prototype molds allow for testing new designs.

Key materials and tools used

The success of aluminum die casting depends on the materials and tools used. Aluminum alloys like ADC12, A356 and A357 are essential for their strength, fatigue resistance, and corrosion resistance. Simulation tools such as Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) optimize the process by reducing defects and improving quality. Infrared thermography monitors temperature distribution, ensuring consistent results. Hot-work tool steels enhance the durability of molds, making them resistant to thermal fatigue.

• Aluminum Alloys: Strong and durable, with A380 being a popular choice for its corrosion resistance.
• Simulation Tools: CFD and FEA ensure precision and reduce waste.
• Infrared Thermography: Identifies hot spots to minimize defects.
• Hot-work Tool Steels: Extend mold life by resisting thermal fatigue.

These materials and tools ensure that aluminum die casting remains efficient and reliable for mass production.

Step-by-Step Process Flow

Mold design and preparation

The aluminum die casting process begins with mold design and preparation. I always emphasize the importance of precision at this stage. Engineers use CAD software to create detailed designs, ensuring the mold meets the required specifications. CNC tools then shape the mold with high accuracy. After machining, the mold undergoes cleaning to remove debris and contaminants. A lubricant is applied to the mold surface to facilitate smooth ejection of the final part and prevent sticking. This preparation ensures the mold is ready for the next steps.

Melting and injecting aluminum

Melting aluminum requires careful attention to detail. I ensure that the aluminum alloy is free from impurities like oils, dirt, and oxides before melting. Techniques such as fluxing and degassing refine the molten aluminum, improving its quality. Maintaining proper temperatures during melting and injection is critical. The molten aluminum is injected into the mold cavity under high pressure, ensuring it fills every intricate detail. Proper ventilation systems in the workspace help disperse harmful fumes, ensuring safety and efficiency.

Cooling and solidification

Cooling and solidification are crucial for achieving the desired mechanical properties. Controlled cooling rates allow the molten aluminum to solidify uniformly, capturing intricate design details. Internal cooling lines within the mold regulate the temperature, preventing defects like warping or shrinkage. I’ve found that maintaining uniform wall thickness in the mold design ensures consistent cooling, resulting in a refined microstructure and enhanced durability of the final part.

Ejection of the part

Once the aluminum solidifies, the mold opens, and ejector pins push the part out. I’ve noticed that challenges like surface defects or flashing can arise if the mold is worn or improperly maintained. Ensuring the mold is in good condition minimizes these issues. Aluminum molds, while less durable than steel, are ideal for smaller production runs. Proper ejection techniques prevent damage to the part and maintain its surface finish.

Trimming and finishing

The final step involves trimming and finishing the part. Excess material, such as flash, is removed using trimming dies or manual tools. Deburring eliminates sharp edges, enhancing safety and aesthetics. For high-volume production, automated trimming systems improve efficiency. Surface finishing techniques like anodizing, powder coating, or polishing enhance the part’s durability and appearance. These steps ensure the aluminum die casting process produces high-quality, ready-to-use components.

Pro Tip: Incorporating conversion coatings during finishing improves corrosion resistance, extending the part’s lifespan.

Advantages of Aluminum Die Casting

High precision and consistency

Aluminum die casting delivers exceptional precision and consistency, which I find crucial for industries requiring tight tolerances. The process incorporates advanced technologies to achieve these results. For example, conformal cooling channels tailored to the mold’s contours minimize thermal stresses, ensuring dimensional accuracy. Real-time monitoring systems track critical parameters, enabling immediate adjustments to maintain quality. Sophisticated sensors and inspection techniques further enhance structural integrity and reduce defects.

These features ensure that aluminum die casting consistently meets the high standards demanded by modern manufacturing.

Cost-effectiveness for large-scale production

I’ve always appreciated how aluminum die casting excels in cost-efficiency, especially for large-scale production. The process achieves this through its high production efficiency and rapid part creation. This speed keeps costs low, even for complex designs. Aluminum’s recyclability further reduces material waste, enhancing cost savings.

• High production efficiency ensures faster turnaround times.
• Rapid production of parts minimizes labor and operational costs.
• Recyclability of aluminum reduces waste and material expenses.

These factors make aluminum die casting an economical choice for industries producing high volumes of components.

Lightweight and durable properties of aluminum

Aluminum’s unique properties make it ideal for lightweight yet durable applications. Its density is about one-third that of steel or copper, which significantly reduces weight without compromising strength. This low density, combined with a high strength-to-weight ratio, makes aluminum perfect for industries like automotive and aerospace, where weight reduction is critical. Additionally, aluminum withstands significant mechanical stress, enhancing its durability. These characteristics ensure that aluminum die casting produces components that are both reliable and efficient.

Applications of Aluminum Die Casting

Automotive industry

Aluminum die casting plays a pivotal role in the automotive sector, where lightweight and durable components are essential. I’ve seen how this process enables the production of intricate parts with excellent dimensional stability, even under high temperatures. Engine blocks, cylinder heads, and transmission housings are prime examples. These components benefit from aluminum’s strength and heat resistance, ensuring reliable performance. Suspension components and wheels also leverage aluminum’s lightweight properties, improving fuel efficiency and handling. The ability to produce thin-walled machine parts with high precision makes aluminum die casting indispensable for modern automotive manufacturing.

Aerospace and defense

In aerospace and defense, aluminum die casting delivers lightweight yet robust components critical for mission success. I’ve worked with parts like aerospace couplers, aircraft seat frames, and missile components, all of which demand high precision and durability. The process supports complex geometries, meeting the stringent requirements of these industries. CNC milling and turning refine the parts further, ensuring they adhere to narrow tolerance ranges. Aluminum’s corrosion resistance and strength-to-weight ratio make it ideal for military and aerospace applications, where every gram matters.

Consumer electronics and appliances

Aluminum die casting enhances the performance and durability of consumer electronics and appliances. In refrigerators and air conditioners, it improves cooling mechanisms and heat exchange efficiency. Washing machines benefit from reduced weight and increased durability, while ovens and microwaves rely on aluminum for even heat distribution and high-temperature resistance. In electronics, aluminum die casting is used for housings and heat dissipation components like heat sinks. I’ve noticed how its lightweight and durable nature ensures devices remain efficient and safe from overheating, meeting the demands of modern consumers.

The aluminum die casting process follows a structured flow, ensuring precision and efficiency. Key steps include die preparation, molten metal injection, solidification, and finishing. This method offers numerous benefits, such as excellent thermal conductivity, cost-effectiveness, and lightweight durability, making it indispensable for industries like automotive and aerospace. Its ability to produce high-strength, corrosion-resistant components drives advancements in modern manufacturing technologies. By combining innovative techniques like conformal cooling channels and robust die materials, aluminum die casting continues to expand its applications and redefine manufacturing standards.

FAQ

What is the lifespan of a die-casting mold?

The lifespan depends on the material and maintenance. I’ve seen high-quality molds last for 100,000 to 1,000,000 cycles with proper care and usage.

How do you prevent defects in aluminum die casting?

I use simulation tools like CFD and FEA to optimize designs. Regular mold maintenance and precise temperature control also minimize defects like porosity or warping.

Can aluminum die casting handle complex geometries?

Yes, it excels at producing intricate shapes. I’ve worked on designs with tight tolerances and thin walls, achieving excellent precision and consistency through advanced mold-making techniques.
